Practice Questions for Mass Spectrometry III

Two mass spectra of gaseous compounds are shown here:

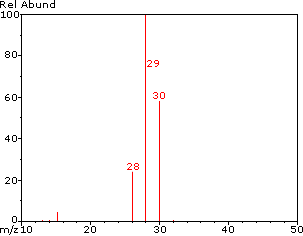

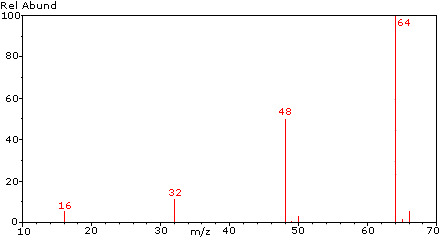

Compound 1 Compound 2

1.   In the answer box to the right enter the name or formula of a compound that would give mass spectrum 1.

2.   In the answer box to the right enter the name or formula of a compound that would give mass spectrum 2.

If you enter a formula, group all atoms of the same element together and do not attempt to subscript numbers. If you enter a name, be careful to spell correctly and to use spaces where required.
