Molecular Rearrangement

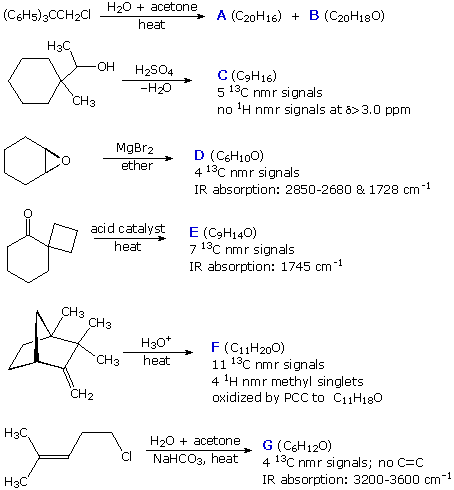

Six reactions in which molecular rearrangement takes place are shown below. Formulas and some other information about the products are provided. Draw a structural formula for each of the designated products.
To draw a formula use the Drawing Window on the right below. Do not draw hydrogen atoms, and do not attempt to indicate stereochemical configurations. When you are finished, check your answer by pressing the appropriate Check Product button.


You have to enable Java and JavaScript on your machine !





A response to your answer will appear in the evaluation window below.


This script written by William Reusch, Dept. of Chemistry, Michigan State University. Please send comments and corrections to whreusch@pilot.msu.edu.
JME Molecular Editor v2002.05 by: by Peter Ertl
