Hybridization and Bonding

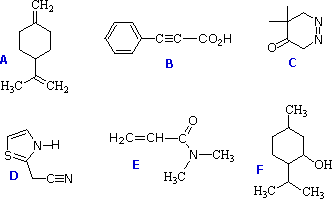

For each of the six structural formulas (A through F), shown below, five questions are posed. The answer to each is a number that should be entered in the appropriate answer box.
Note that the sigma-bond question refers only to carbon-carbon bonds, whereas the pi-bond question includes all such bonds between carbon and any other kind of atom.


A Number of sp3 carbons:  ...............
Number of sp2 carbons:  ...............
Number of sp carbons:  ................
Number of carbon-carbon σ-bonds: .......
Number of π-bonds to carbon:  .............
    B Number of sp3 carbons: ...............
Number of sp2 carbons:  ...............
Number of sp carbons:  ................
Number of carbon-carbon σ-bonds: .......
Number of π-bonds to carbon:  .............
    C Number of sp3 carbons: ................
Number of sp2 carbons: ...............
Number of sp carbons:  ................
Number of carbon-carbon σ-bonds: .......
Number of π-bonds to carbon:  .............

D Number of sp3 carbons:  ..............
Number of sp2 carbons:  ...............
Number of sp carbons:  ................
Number of carbon-carbon σ-bonds: .......
Number of π-bonds to carbon:  .............
E Number of sp3 carbons: ...............
Number of sp2 carbons: ...............
Number of sp carbons:  ................
Number of carbon-carbon σ-bonds: .......
Number of π-bonds to carbon:  .............
F Number of sp3 carbons:  ...............
Number of sp2 carbons: ...............
Number of sp carbons:  ................
Number of carbon-carbon σ-bonds: .......
Number of π-bonds to carbon:  .............




This script written by William Reusch, Dept. of Chemistry, Michigan State University. Please send comments and corrections to whreusch@pilot.msu.edu.
